561.SON.03

Chrysler 948TE, Honda/Acura 9-Speed and ZF9HP48 units incorporate variable force solenoids to control clutch apply/release, torque converter clutch apply/release and line pressure. The solenoid pressure regulator valve insures proper flow volume and pressure to the solenoids during hot conditions and low pressure operation. Low feed pressure at idle can create delayed engagement or wrong gear starts. This valve also limits the maximum pressure to all the solenoids. Excessive solenoid feed pressure can flood the solenoids causing gear ratio codes, harsh up/downshifts and excessive line pressure. Sonnax drop-in solenoid pressure regulator valve kit 85740-09K restores proper solenoid pressure regulation.

Hardcoat anodized aluminum valve combats premature wear
Highly wear resistant billet sleeve seals bore from wear-related fluid loss and provides new, unworn bore for the valve to operate
New spring provided for correct limit pressure
Drill and plug included to allow for quick rerouting of balance oil at the separator plate
Drop-in Zip Valve™ parts install quickly and easily

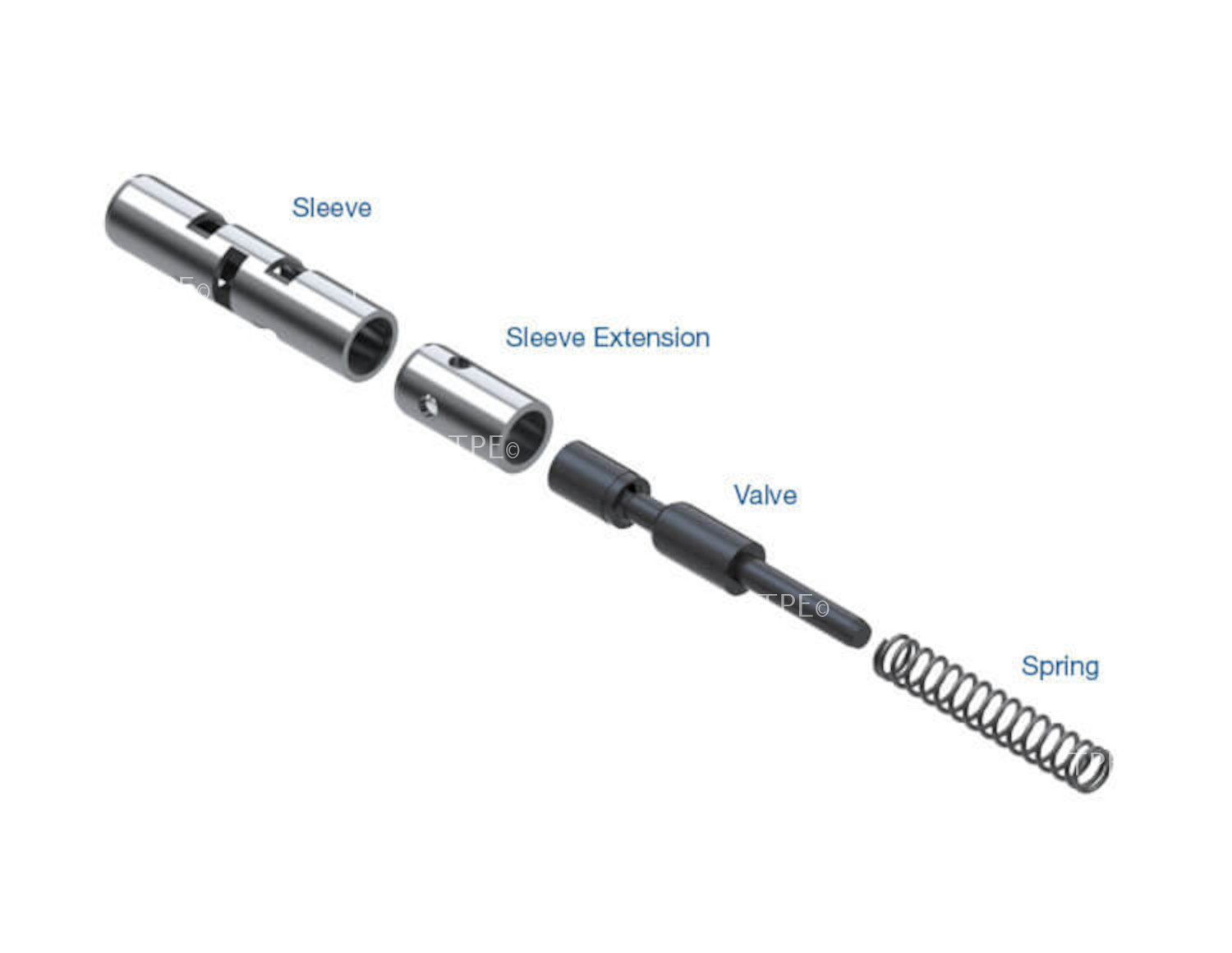

Contents:
Valve
Sleeve
Sleeve Extension
Spring
Drill Bit Not shown
Plug Not Shown
